PRODUCT DETAILS
Description

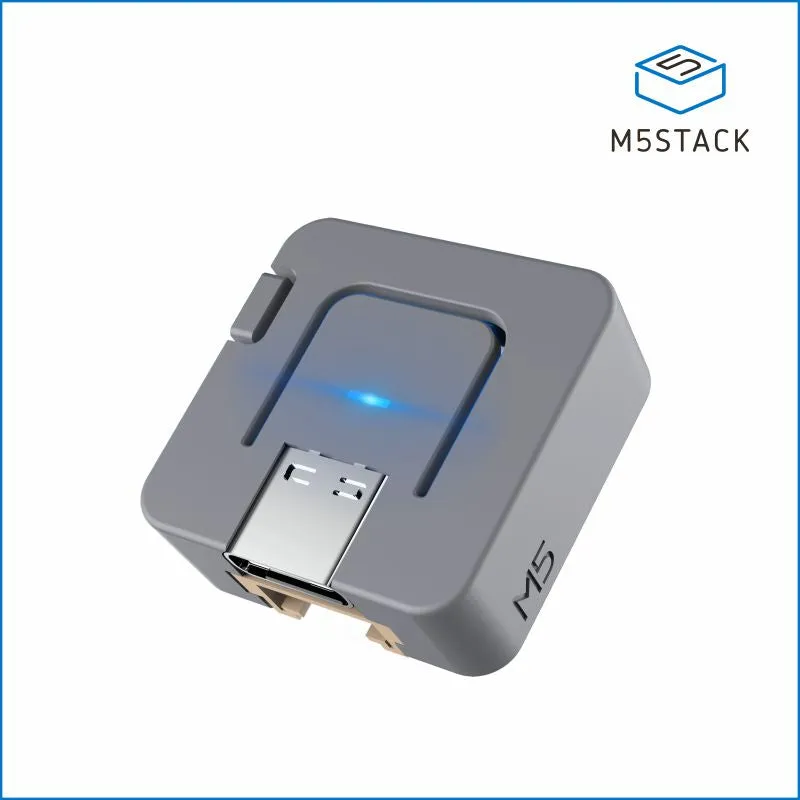

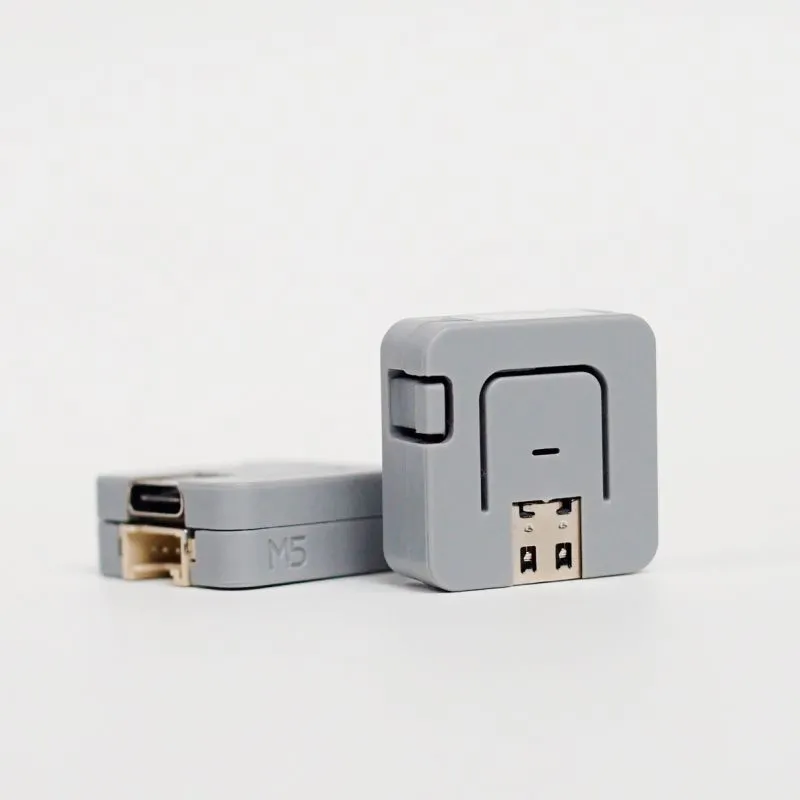

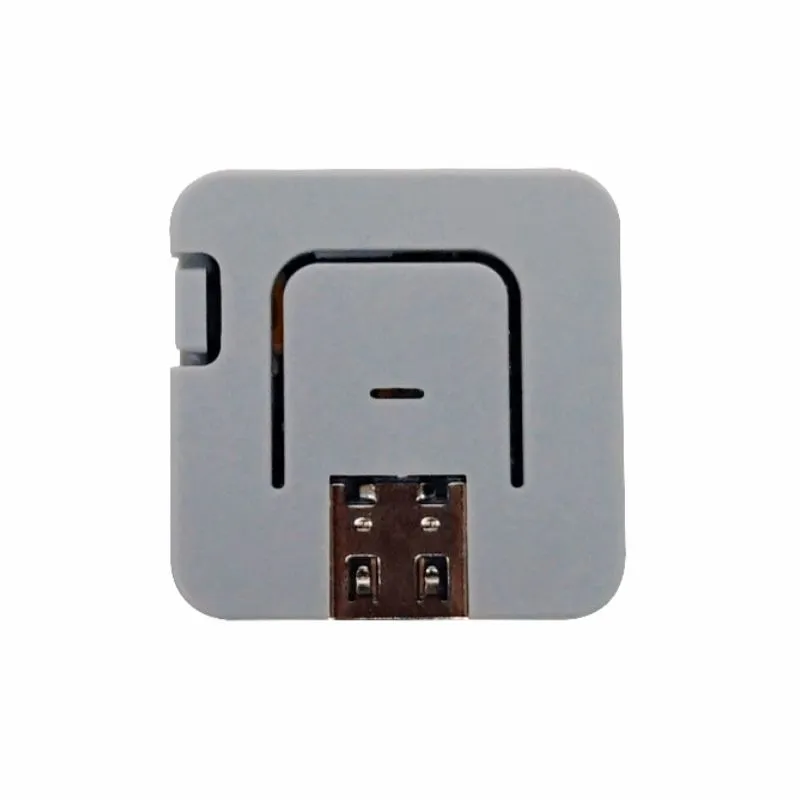

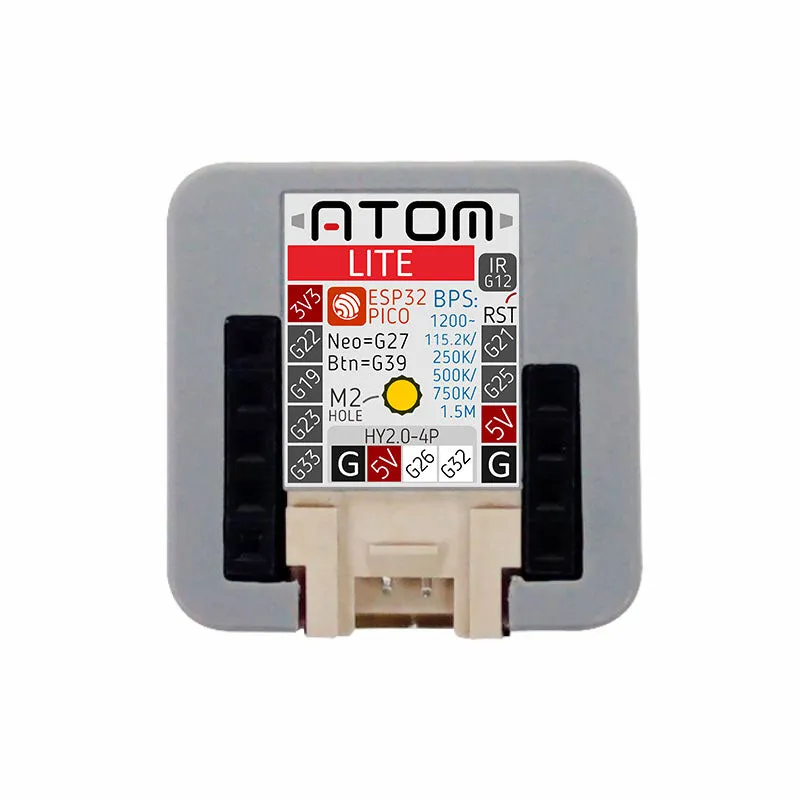

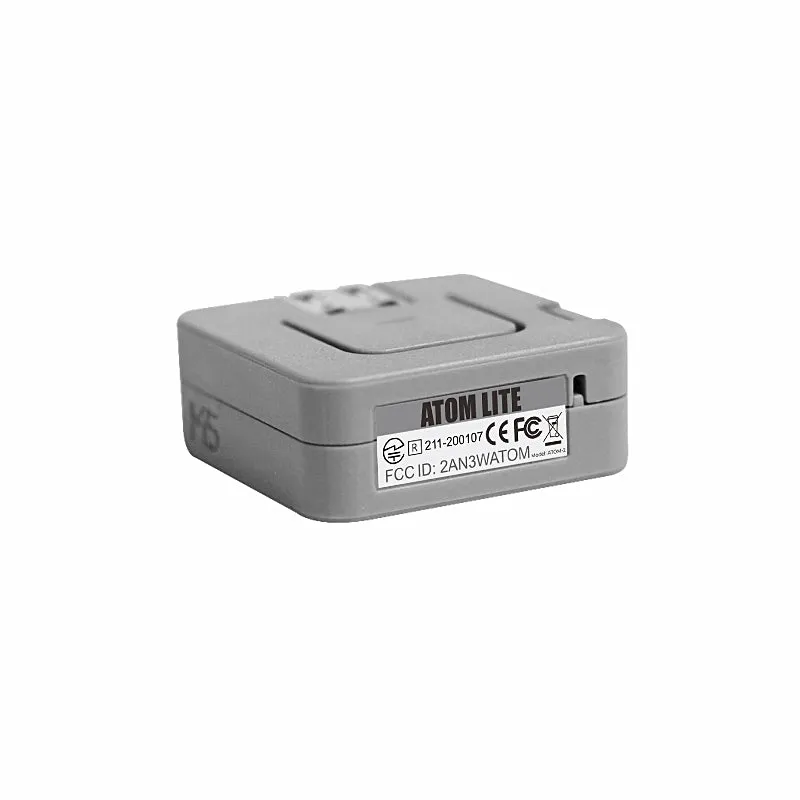

Atom Lite is the compact development board in the M5Stack development kit series. With its small size of only 24*24mm, this offers ample GPIOs for user customization, making it perfect for embedded smart home devices and the creation of smart toys.
Atom Lite is powered by the -PICO chip, which integrates Wi-Fi technologies and includes a 4MB SPI flash memory. This ensures seamless connectivity and provides sufficient storage capacity for your applications.

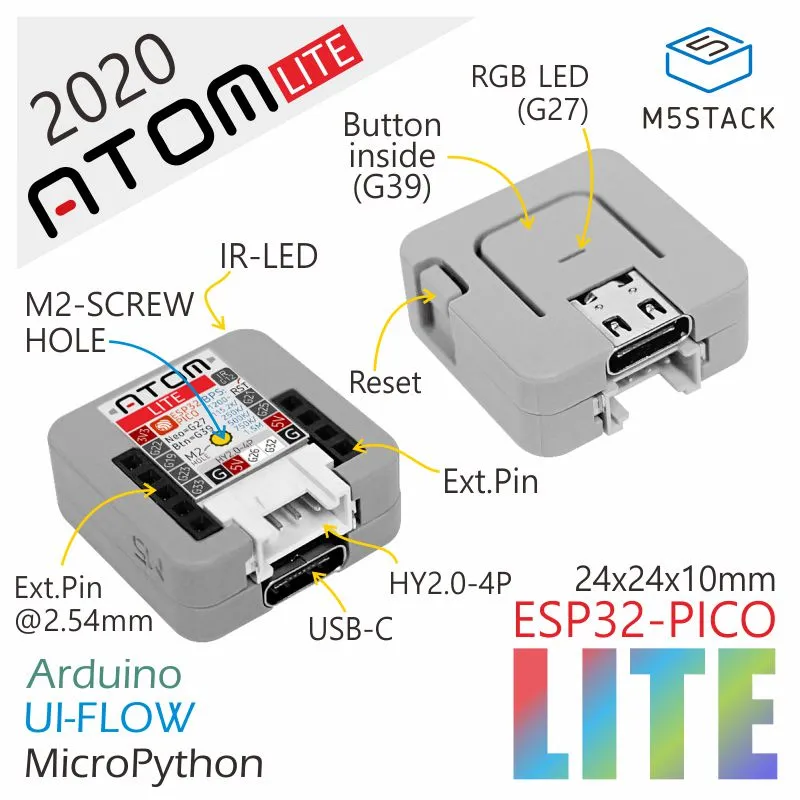

The board features an Infra-Red LED, RGB LED, buttons, and a HY2.0 interface, allowing for versatile interactions and connectivity options. Additionally, Atom Lite can be easily connected to external sensors and actuators through its 6 GPIOs, expanding its capabilities for various projects.
With its on-board Type-C USB interface, Atom Lite enables fast program upload and execution, streamlining the development process.Atom Lite is the perfect choice for developers seeking a compact and powerful development board for creating embedded smart home devices and smart toys. With its rich features and customizable GPIOs, Atom Lite opens up endless possibilities for innovation and creativity in the IoT space.
Product Features
- -based

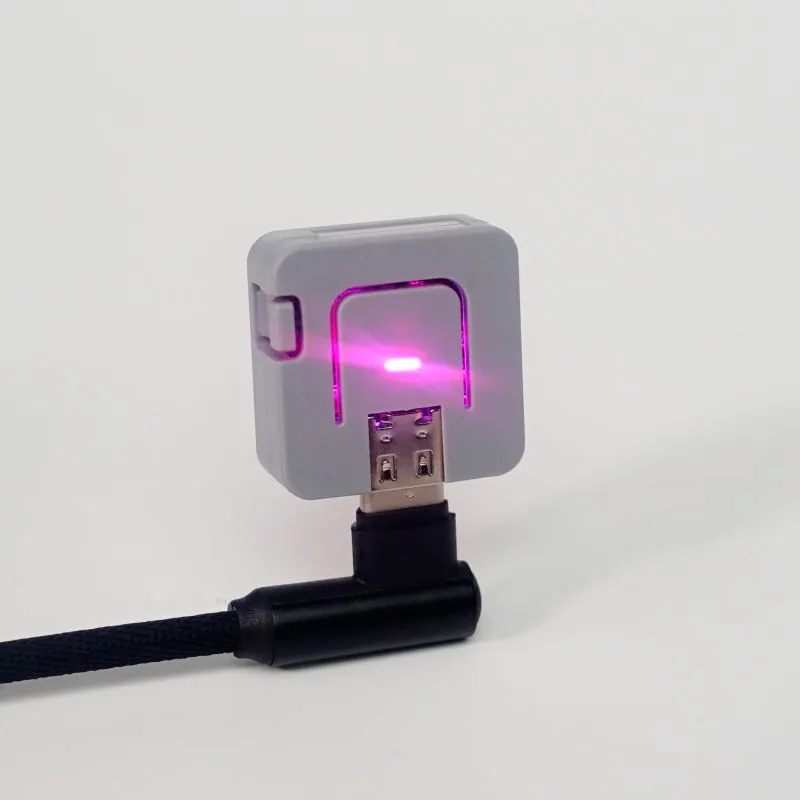

- RGB LED(SK6812)
- Programmable button
- Built-in Infra-red
- Extendable Pins & Holes
- Program Platform: 、
Include

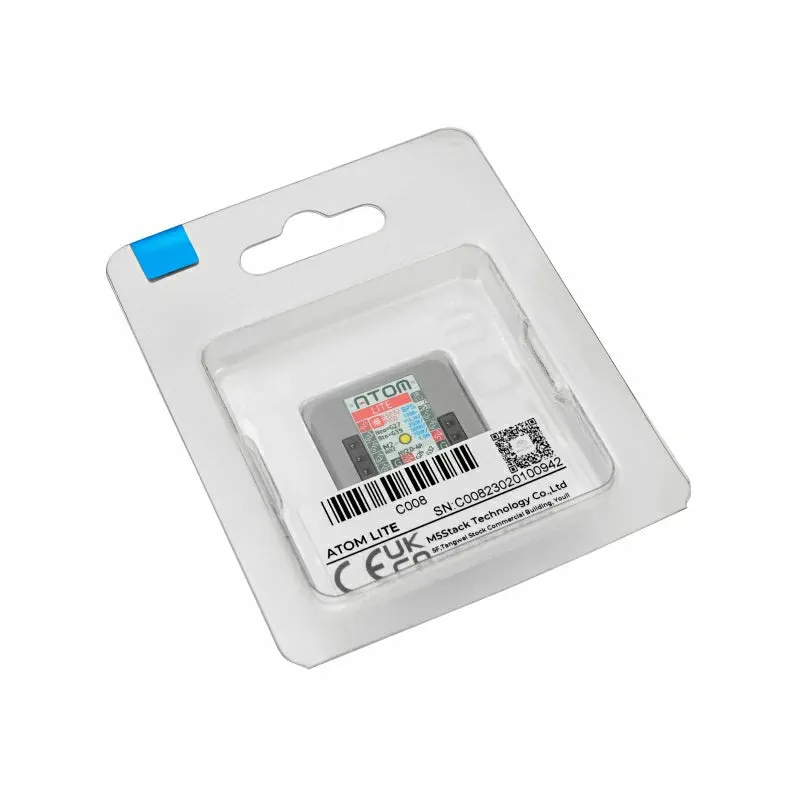

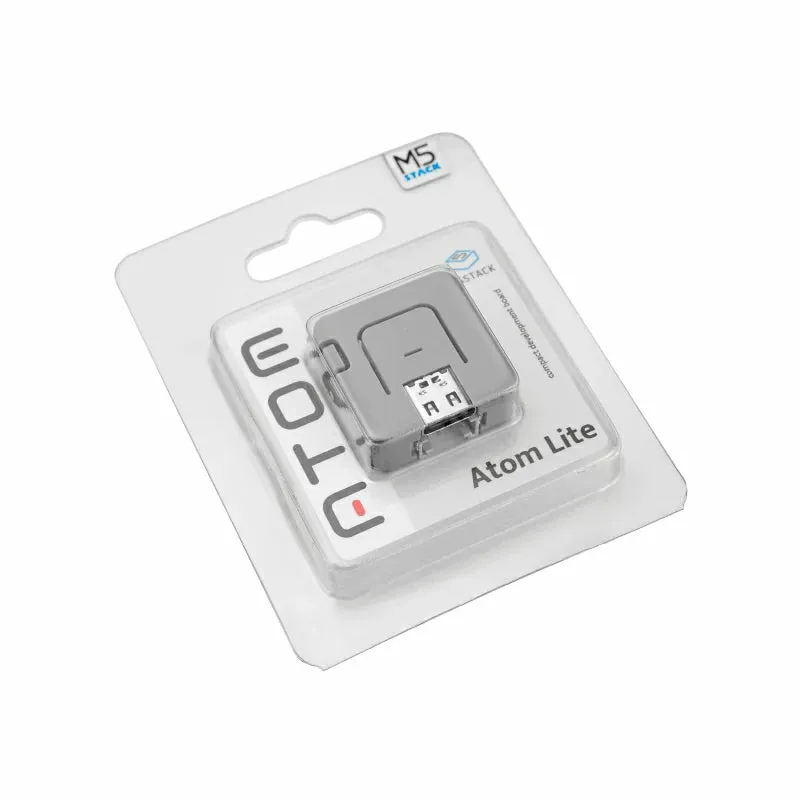

- 1x ATOM Lite
Applications
- Internet of things terminal controller
- IoT node
- Wearable peripherals
Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C I/0 UART) x 1 |
| PIN Port | G19, G21,G22,G23,G25, G33 |
| RGB LED | SK6812 3535 x 1 |
| IR | Infrared transmission |
| Button | Custom button x 1 |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 0°C to 60°C |
| Net weight | 3g |
| Gross weight | 12g |

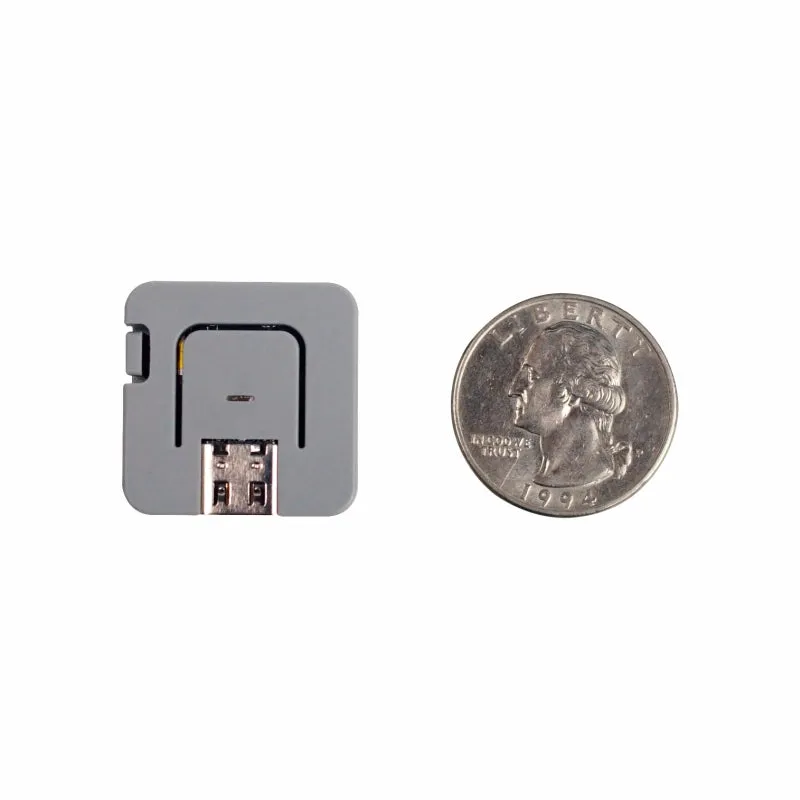

| Product Size | 24*24*10mm |
| Package Size | 43*43*13mm |
| Case Material | Plastic ( PC ) |
